Lowrance Yamaha Engine Interface Cable [120-37]

Lowrance Yamaha Engine Interface Cable [120-37]

Lowrance
SKU:
CO-32084
|
UPC:
042194529820
$112.99
$126.00
(You save $13.01 )
Width:
4.00 (in)
Height:
2.00 (in)
Depth:
10.00 (in)
Current Stock:
Prices exclude applicable sales tax. Shipping costs, tax, discounts, and the final order total are displayed at checkout.
Adding to cart… The item has been added
Description

Yamaha Engine Interface Cable

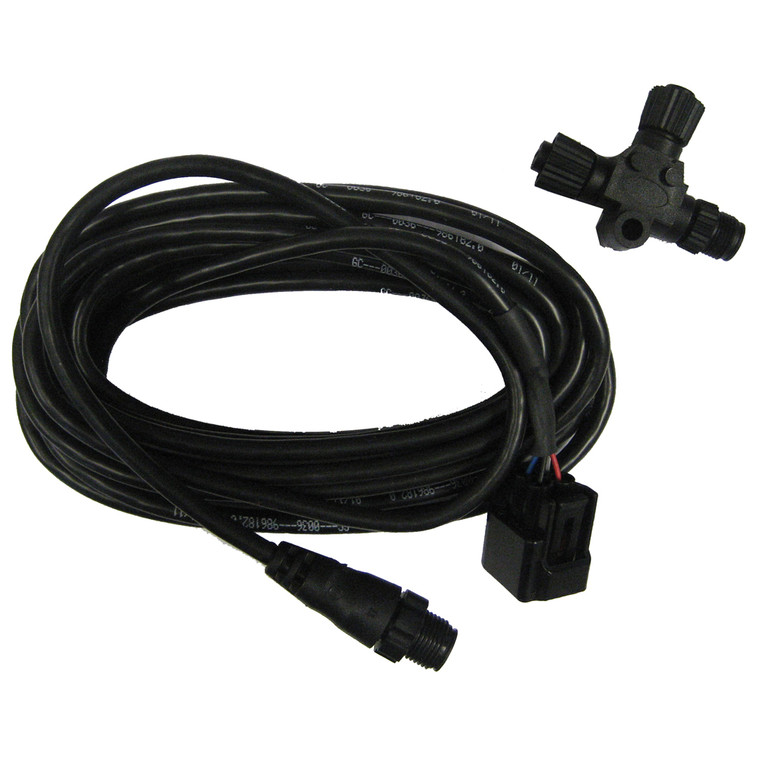

Yamaha engine interface cable 4.5 m (15 ft) and T-connector

Connects to Yamaha engines without Yamaha CommandLink Plus system.

  • 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
  • 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.


Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350

RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure

*Digital trim must be connected by a Yamaha dealer.

*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.

Works with: NMEA 2000 Compliant Units

Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 4.5m
  • Box Dimensions: 2"H x 4"W x 10"L WT: 0.45 lbs
  • UPC: 042194529820
Reviews
Additional Information
MPN:
120-37
