Quick Aleph AL3 1012D Windlass - 12V, 1000W, 10MM Gypsy to 5\/8" Rope w\/Drum [FSAL1012D010B00]

Quick Aleph AL3 1012D Windlass - 12V, 1000W, 10MM Gypsy to 5/8" Rope w/Drum [FSAL1012D010B00]

Quick
SKU:
CO-114030
|
UPC:
8057090231762
$2,220.99
$2,482.95
(You save $261.96 )
Width:
16.00 (in)
Height:
11.00 (in)
Depth:
17.00 (in)
Current Stock:
Prices exclude applicable sales tax. Shipping costs, tax, discounts, and the final order total are displayed at checkout.
Adding to cart… The item has been added
Description

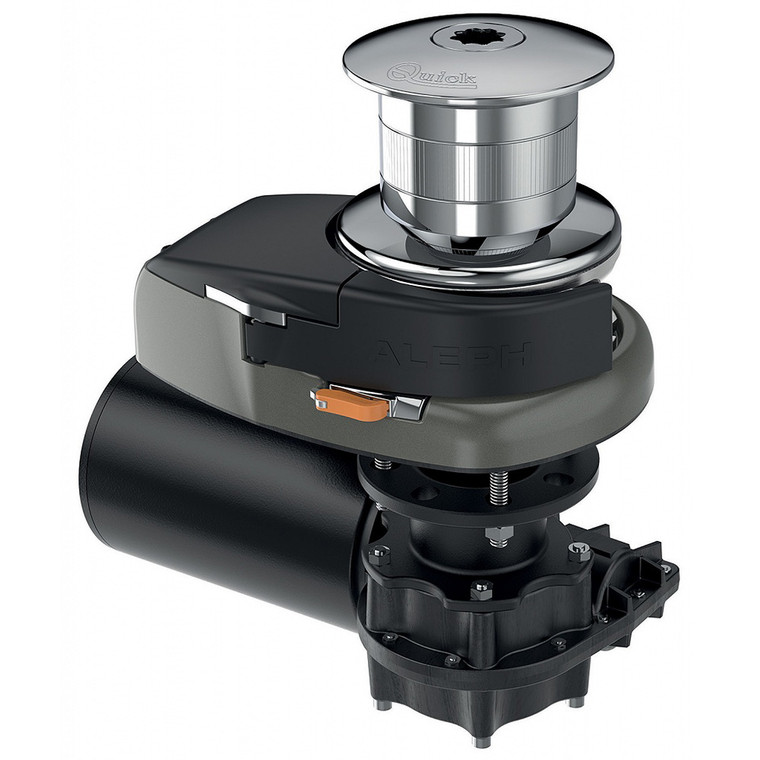

Aleph AL3 1012D Windlass - 12V, 1000W, 10MM Gypsy to 5/8" Rope with Drum

The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.

Features:

  • For 33-46FT Boats
  • Vertical windlasses
  • 10mm - 3/8" gypsy
  • Requires 5/8" three-strand polyester rope
  • Includes T6315-12 Solenoid
  • Base in anodized aluminum with hard oxide
  • With drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor
  • Technopolymer gearbox (700W / 1000W)

Specifications:

  • Motor power - 1000 W
  • Motor supply voltage - 12 V
  • Maximum pull - 1000 Kg / 2204 lb
  • Maximum working load - 370 kg/816 lb
  • Working load - 120 kg/264 lb
  • Current absorption @ working load - 140 A
  • Maximum chain speed - 39,6 m/min 129.2 ft/min
  • Maximum chain speed @ working load - 20,4 m/min 66.9 ft/min
  • Weight  -19,7 Kg / 43 lb
